组件更新

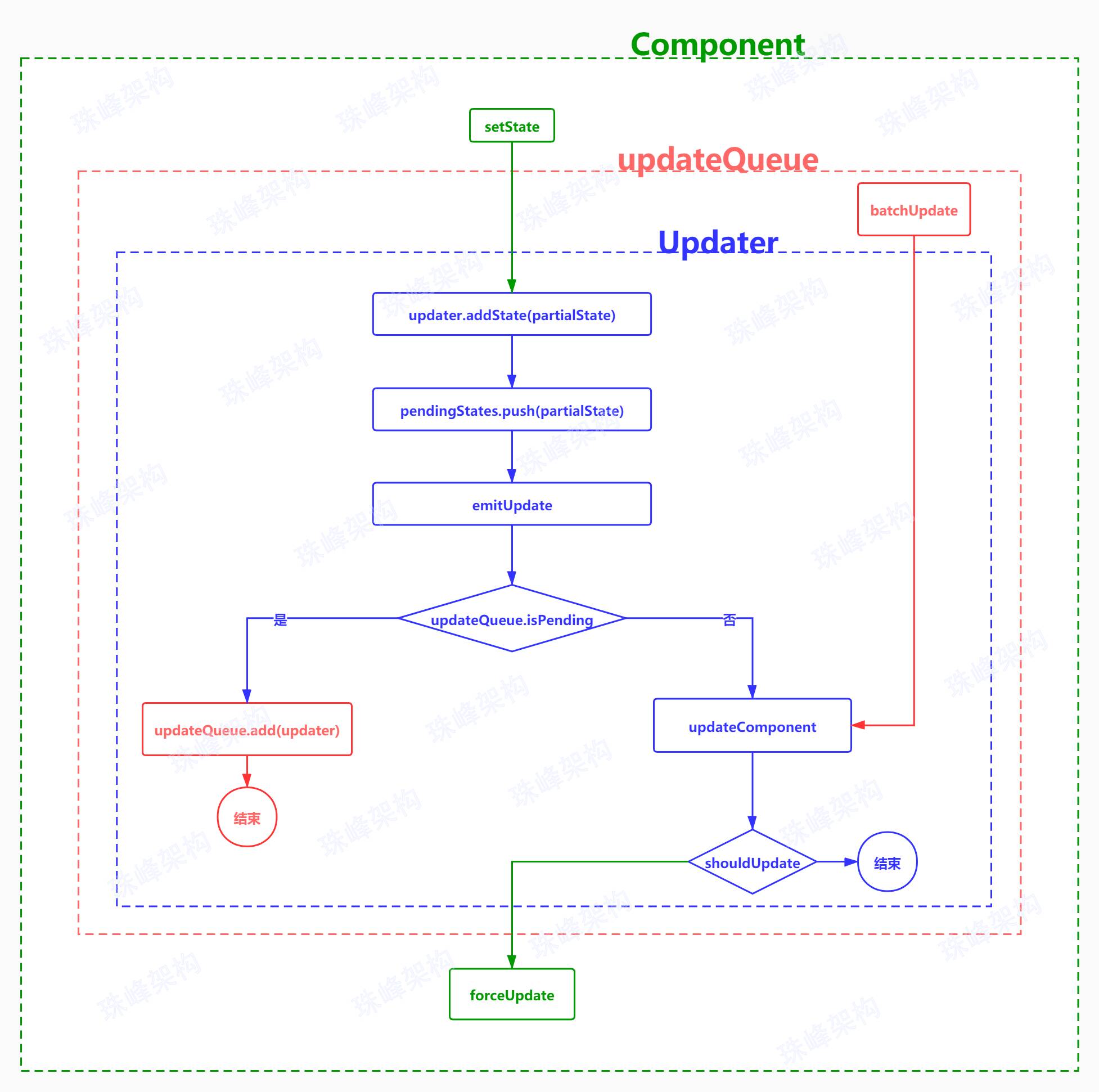

  • 组件更新判断逻辑如下图: ./images/set-state.jpg

1. 合并state

1.1. src/index.js





















import React from './react';
import ReactDOM from './react-dom';
class Counter extends React.Component {
  constructor(props) {
    super(props);
    this.state = { number: 0 };
    setTimeout(() => {
      this.setState({ number: this.state.number + 1 });
      console.log(this.state);
    }, 1000);
  }
  render() {
    return <div id={'counter' + this.state.number}>+</div>
  }
}
ReactDOM.render(
  <Counter />,
  document.getElementById('root')
);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

1.2. src/react/component.js





















































































//更新队列
export const updateQueue = {
  updaters: [],//要执行的updater对象
  isPending: false,//是否处于批量更新模式
};

class Updater {
  constructor(componentInstance) {
    this.componentInstance = componentInstance;//Updater和类组件1对1关系
    this.pendingStates = [];//更新如果批量的，先把状态暂存到数组，最后更新时统一合并
    this.nextProps = null;//新的属性对象
  }
  addState(partialState){
    this.pendingStates.push(partialState);//把新状态放入数组
    this.emitUpdate();
  }
  emitUpdate(nextProps){
    this.nextProps = nextProps;
    //如果有新属性对象 或者 队列处于‘休息’状态，直接更新
    if (nextProps || !updateQueue.isPending) {
      this.updateComponent();
    } else {//否则交给队列处理
      updateQueue.add(this);
    }
  }
  updateComponent(){
    let { componentInstance, pendingStates, nextProps } = this;
    if (nextProps || pendingStates.length > 0) {//长度大于0，有要合并的状态
      shouldUpdate(componentInstance, nextProps, this.getState());
    }
  }
  //合并及返回新的状态
  getState(){
    let { componentInstance, pendingStates } = this;
    let { state } = componentInstance;//老组件当前状态
    if (pendingStates.length > 0) {
      //迭代pendingStates，将所有状态合并到state
      for (let i = 0; i < pendingStates.length; i++) {
        let nextState = pendingStates[i];
        if (typeof nextState === 'function') {
          state = { ...state, ...nextState.call(componentInstance, state) };
        } else {
          state = { ...state, ...nextState };
        }
      }
    }
    pendingStates.length = 0;//合并后清空数组
    return state;
  }
}
//判断是否要更新
function shouldUpdate(componentInstance, nextProps, nextState) {
  componentInstance.props = nextProps;//将新props赋给组件
  componentInstance.state = nextState;//将新state赋给组件
  if (
    componentInstance.shouldComponentUpdate &&
    !componentInstance.shouldComponentUpdate(nextProps, nextState)
  ) {
    //如果shouldComponentUpdate返回false，则不更新
    return false;
  }
  componentInstance.forceUpdate();//让组件强制更新
}

class Component {
  constructor(props) {
    this.props = props;
    this.$updater = new Updater(this); //this 就是类组件的实例
    this.state = {}; // 当前状态
    this.nextProps = null; // 下一个属性对象
  }
  //批量更新 partial，状态可能会被合并
  setState(partialState) {
    this.$updater.addState(partialState);
  }
  forceUpdate(){//进行组件更新
  }
}
//类组件的本质也是函数(请参考new Class原理)，通过`isReactComponent`判断是类组件还是函数组件
Component.prototype.isReactComponent = {};
export {
  Component
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83

2. 简单替换DOM

2.1. src/react/component.js

































































































import { compareTwoElements } from './vdom';

//更新队列
export const updateQueue = {
  updaters: [],//要执行的updater对象
  isPending: false,//是否处于批量更新模式
};

class Updater {
  constructor(componentInstance) {
    this.componentInstance = componentInstance;//Updater和类组件1对1关系
    this.pendingStates = [];//更新如果批量的，先把状态暂存到数组，最后更新时统一合并
    this.nextProps = null;//新的属性对象
  }
  addState(partialState){
    this.pendingStates.push(partialState);//把新状态放入数组
    this.emitUpdate();
  }
  emitUpdate(nextProps){
    this.nextProps = nextProps;
    //如果有新属性对象 或者 队列处于‘休息’状态，直接更新
    if (nextProps || !updateQueue.isPending) {
      this.updateComponent();
    } else {//否则交给队列处理
      updateQueue.add(this);
    }
  }
  updateComponent(){
    let { componentInstance, pendingStates, nextProps } = this;
    if (nextProps || pendingStates.length > 0) {//长度大于0，有要合并的状态
      shouldUpdate(componentInstance, nextProps, this.getState());
    }
  }
  //合并及返回新的状态
  getState(){
    let { componentInstance, pendingStates } = this;
    let { state } = componentInstance;//老组件当前状态
    if (pendingStates.length > 0) {
      //迭代pendingStates，将所有状态合并到state
      for (let i = 0; i < pendingStates.length; i++) {
        let nextState = pendingStates[i];
        if (typeof nextState === 'function') {
          state = { ...state, ...nextState.call(componentInstance, state) };
        } else {
          state = { ...state, ...nextState };
        }
      }
    }
    pendingStates.length = 0;//合并后清空数组
    return state;
  }
}
//判断是否要更新
function shouldUpdate(componentInstance, nextProps, nextState) {
  componentInstance.props = nextProps;//将新props赋给组件
  componentInstance.state = nextState;//将新state赋给组件
  if (
    componentInstance.shouldComponentUpdate &&
    !componentInstance.shouldComponentUpdate(nextProps, nextState)
  ) {
    //如果shouldComponentUpdate返回false，则不更新
    return false;
  }
  componentInstance.forceUpdate();//让组件强制更新
}

class Component {
  constructor(props) {
    this.props = props;
    this.$updater = new Updater(this); //this 就是类组件的实例
    this.state = {}; // 当前状态
    this.nextProps = null; // 下一个属性对象
  }
  //批量更新 partial，状态可能会被合并
  setState(partialState) {
    this.$updater.addState(partialState);
  }
  forceUpdate(){//进行组件更新
    let { props, state, renderElement: oldRenderElement } = this;
    if (this.componentWillUpdate) {
      this.componentWillUpdate();
    }
    let newRenderElement = this.render();
    let currentElement = compareTwoElements(oldRenderElement, newRenderElement);
    this.renderElement = currentElement;
    if (this.componentDidUpdate) {
      this.componentDidUpdate();
    }
  }
}
//类组件的本质也是函数(请参考new Class原理)，通过`isReactComponent`判断是类组件还是函数组件
Component.prototype.isReactComponent = {};
export {
  Component
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95

2.2. src/react/vdom.js





































































































































import { TEXT, ELEMENT, CLASS_COMPONENT, FUNCTION_COMPONENT } from './constants';
import { setProps, onlyOne, flatten } from './utils';

export function compareTwoElements(oldRenderElement, newRenderElement) {
  oldRenderElement = onlyOne(oldRenderElement);
  newRenderElement = onlyOne(newRenderElement);
  let currentDOM = oldRenderElement.dom;//取出老的DOM节点（此处，element.dom = dom;已经做过预埋设计）
  let currentElement = oldRenderElement;
  if (newRenderElement == null) {
    currentDOM.parentNode.removeChild(currentDOM);//新的虚拟DOM为null，删掉老节点
    currentDOM = null;
  } else if (oldRenderElement.type != newRenderElement.type) { // span div function class
    let newDOM = createDOM(newRenderElement);//类型不同，新节点替换老节点
    currentDOM.parentNode.replaceChild(newDOM, currentDOM);
    currentElement = newRenderElement;
  } else {//新老节点都存在，类型一样。进行 dom-diff 深度比较，比较他们的属性和子节点，并尽可能复用老节点
    //TODO 这里简单模拟实现
    let newDOM = createDOM(newRenderElement);
    currentDOM.parentNode.replaceChild(newDOM, currentDOM);
    currentElement = newRenderElement;
  }
  return currentElement;
}

export function createDOM(element) {
  if (typeof element !== 'object') {
    throw Error(`Uncaught DOMException: Failed to execute 'createElement' on 'Document': The tag name provided ('${element}') is not a valid name.`)
  }
  /**
   * !!! element 如果是字符串或者数字，已经在迭代`children`时封装成对象
   * 因此`createDOM`方法可以整体进行改造
   */
  let dom;
  element = onlyOne(element); // 如果是数组，只取第一个
  let { $$typeof } = element;
  if (!$$typeof) { // 字符串或者数字
    dom = document.createTextNode(element);
  } else if ($$typeof == TEXT) {
    dom = document.createTextNode(element.content);
  } else if ($$typeof == ELEMENT) { // 原生DOM节点
    dom = createNativeDOM(element);
  } else if ($$typeof == FUNCTION_COMPONENT) { // 函数组件
    dom = createFunctionComponentDOM(element);
  } else if ($$typeof == CLASS_COMPONENT) { // 类组件
    dom = createClassComponentDOM(element);
  }
  /**
   * `element`是ReactElement创建出来的虚拟DOM，让虚拟的DOM的`dom`属性指向真实DOM
   * 这里是一个预埋设计，或者叫铺垫，通过虚拟DOM能够获取真实DOM
   */
  element.dom = dom;
  return dom;
}
// 创建函数组件真实的DOM对象
function createFunctionComponentDOM(element) {
  //element: $$typeof, type, key, ref, props
  let { type, props } = element;
  /**
   * function FunctionComponent(props) {
   *   return React.createElement('div', { id: 'counter' }, 'hello');
   * }
   */
  let renderElement = type(props);// type === FunctionComponent
  //element 是 React.createElement(FunctionComponent, config, children); 的返回值
  //element 是 FunctionComponent 的父级，当然这里不是DOM的父级，只是理解为父级
  element.renderElement = renderElement; // 这里也是一个预埋设计
  let dom = createDOM(renderElement);
  return dom;
  // 第25行`element.dom = dom;`，可以推导出: element.renderElement.dom=真实DOM
}
// 创建类组件真实的DOM对象
function createClassComponentDOM(element) {
  let { type, props } = element;
  /**
   * class ClassCounter extends React.Component {
   *   constructor(props) {
   *     super(props);
   *   }
   *   render() {
   *     return React.createElement('div', { id: 'counter' }, 'hello');
   *   }
   * }
   */
  let componentInstance = new type(props);
  element.componentInstance = componentInstance; // 这里也是一个预埋设计
  let renderElement = componentInstance.render();
  componentInstance.renderElement = renderElement; // 这里也是一个预埋设计
  let dom = createDOM(renderElement);
  return dom;
  // 第25行`element.dom = dom;`，可以推导出: element.componentInstance.renderElement.dom=真实DOM
}
/**
let element = React.createElement('button',
  { id: 'sayHello', onClick },
  'say', React.createElement('span', { onClick: spanClick, style: { color: 'red' } }, 'Hello')
);
 */
function createNativeDOM(element) {
  let { type, props } = element; // div button span
  let dom = document.createElement(type); //真实DOM对象
  //1，创建虚拟dom的子节点
  createNativeDOMChildren(dom, element.props.children);
  //2，给DOM元素添加属性
  setProps(dom, props);
  return dom;
}
function createNativeDOMChildren(parentNode, ...children) {
  let childrenNodeArr = children && flatten(children);
  if (childrenNodeArr) {
    for (let i = 0; i < childrenNodeArr.length; i++) {
      let child = childrenNodeArr[i];
      /**
       * !!! 由于需要通过 element 获取 dom 元素，此处将 字符串或者数字 封装成对象
       */
      if (typeof child !== 'object') { // 字符串或数字
        child = childrenNodeArr[i] = { $$typeof: TEXT, type: TEXT, content: child };
      }
      //child会传递给element，预埋设计，跟第25行`element.dom = dom;`逻辑一样，给element添加索引
      child._mountIndex = i;
      let childDOM = createDOM(child);
      parentNode.appendChild(childDOM);
    }
  }
}

export function ReactElement($$typeof, type, key, ref, props) {
  let element = {
    $$typeof, type, key, ref, props
  };
  return element;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131

3. state与事件

3.1. src/index.js





























import React from './react';
import ReactDOM from './react-dom';
class Counter extends React.Component {
  constructor(props) {
    super(props);
    this.state = { number: 0 };
  }
  handleClick = () => {
    this.setState({ number: this.state.number + 1 });
    console.log(this.state.number);//0
    this.setState({ number: this.state.number + 1 });
    console.log(this.state.number);//0
    setTimeout(() => {
      this.setState({ number: this.state.number + 1 });
      console.log(this.state.number);//2
      this.setState({ number: this.state.number + 1 });
      console.log(this.state.number);//3
    }, 10);
  }
  render() {
    return <div id={'counter' + this.state.number} onClick={this.handleClick}>+</div>
  }
}
ReactDOM.render(
  <Counter />,
  document.getElementById('root')
);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

3.2. src/react/component.js















































































































import { compareTwoElements } from './vdom';

//更新队列
export const updateQueue = {
  updaters: [],//要执行的updater对象
  isPending: false,//是否处于批量更新模式
  add(updater) {
    this.updaters.push(updater);
  },
  //需要调用batchUpdate才更新
  batchUpdate(){
    let { updaters } = this;
    this.isPending = true;//开始更新
    let updater;
    while (updater = updaters.pop()) {
      updater.updateComponent();//更新所有 dirty 组件
    }
    this.isPending = false;//更新完毕
  }
};

class Updater {
  constructor(componentInstance) {
    this.componentInstance = componentInstance;//Updater和类组件1对1关系
    this.pendingStates = [];//更新如果批量的，先把状态暂存到数组，最后更新时统一合并
    this.nextProps = null;//新的属性对象
  }
  addState(partialState){
    this.pendingStates.push(partialState);//把新状态放入数组
    this.emitUpdate();
  }
  emitUpdate(nextProps){
    this.nextProps = nextProps;
    //如果有新属性对象 或者 队列处于‘休息’状态，直接更新
    if (nextProps || !updateQueue.isPending) {
      this.updateComponent();
    } else {//否则交给队列处理
      updateQueue.add(this);
    }
  }
  updateComponent(){
    let { componentInstance, pendingStates, nextProps } = this;
    if (nextProps || pendingStates.length > 0) {//长度大于0，有要合并的状态
      shouldUpdate(componentInstance, nextProps, this.getState());
    }
  }
  //合并及返回新的状态
  getState(){
    let { componentInstance, pendingStates } = this;
    let { state } = componentInstance;//老组件当前状态
    if (pendingStates.length > 0) {
      //迭代pendingStates，将所有状态合并到state
      for (let i = 0; i < pendingStates.length; i++) {
        let nextState = pendingStates[i];
        if (typeof nextState === 'function') {
          state = { ...state, ...nextState.call(componentInstance, state) };
        } else {
          state = { ...state, ...nextState };
        }
      }
    }
    pendingStates.length = 0;//合并后清空数组
    return state;
  }
}
//判断是否要更新
function shouldUpdate(componentInstance, nextProps, nextState) {
  componentInstance.props = nextProps;//将新props赋给组件
  componentInstance.state = nextState;//将新state赋给组件
  if (
    componentInstance.shouldComponentUpdate &&
    !componentInstance.shouldComponentUpdate(nextProps, nextState)
  ) {
    //如果shouldComponentUpdate返回false，则不更新
    return false;
  }
  componentInstance.forceUpdate();//让组件强制更新
}

class Component {
  constructor(props) {
    this.props = props;
    this.$updater = new Updater(this); //this 就是类组件的实例
    this.state = {}; // 当前状态
    this.nextProps = null; // 下一个属性对象
  }
  //批量更新 partial，状态可能会被合并
  setState(partialState) {
    this.$updater.addState(partialState);
  }
  forceUpdate(){//进行组件更新
    console.log('force')
    let { props, state, renderElement: oldRenderElement } = this;
    if (this.componentWillUpdate) {
      this.componentWillUpdate();
    }
    let newRenderElement = this.render();
    let currentElement = compareTwoElements(oldRenderElement, newRenderElement);
    this.renderElement = currentElement;
    if (this.componentDidUpdate) {
      this.componentDidUpdate();
    }
  }
}
//类组件的本质也是函数(请参考new Class原理)，通过`isReactComponent`判断是类组件还是函数组件
Component.prototype.isReactComponent = {};
export {
  Component
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109

3.3. src/react/event.js









































































import { updateQueue } from './component';

/**
 * React通过，类似于`事件委托`机制，将事件绑定到document上；
 * 并把事件回调函数，以`eventStore`的形式，挂载到对应的真实DOM上
 * @param {*} dom 要绑定事件的DOM节点
 * @param {*} eventType 事件类型 onClick
 * @param {*} listener 事件处理函数
 */
export function addEvent(dom, eventType, listener) {
  eventType = eventType.toLowerCase(); // onClick 作为key，转换成 onclick
  //在要绑定的DOM节点上挂载一个对象，准备存放监听函数
  let eventStore = dom.eventStore || (dom.eventStore = {});
  //eventStore.onClick = () => {console.log('this is onClick')}
  eventStore[eventType] = listener;
  /**
   * 这里可以做兼容处理，比如兼容IE、Chrome、Firefox等等
   */
  // true是捕获阶段，处理事件； false是冒泡阶段，处理事件
  document.addEventListener(eventType.slice(2), dispatchEvent, false);
}

let syntheticEvent;//合成对象，可以复用，减少垃圾回收，提高性能
function dispatchEvent(event) {
  let { type, target } = event;//type->click target->button
  let eventType = 'on' + type; //onclick
  syntheticEvent = getSyntheticEvent(event);
  //事件监听函数执行之前，进入批量更新模式
  updateQueue.isPending = true;
  // 模拟冒泡过程
  while(target) {
    let {eventStore} = target;
    let listener = eventStore && eventStore[eventType];//onClick
    if (listener) {
      listener.call(target, syntheticEvent);
    }
    target = target.parentNode;
  }
  //所有监听函数执行完毕，清掉所有属性
  for (const key in syntheticEvent) {
    if (syntheticEvent.hasOwnProperty(key)) {
      delete syntheticEvent[key];
    }
  }
  //事件处理函数执行完成，关掉批量更新模式
  updateQueue.isPending = false;
  //执行批量更新，把缓存的updater全部执行
  updateQueue.batchUpdate();
}
//如果执行了persist，就让syntheticEvent指向新对象
function persist() {
  syntheticEvent = {};
  syntheticEvent.__proto__.persist = persist;
}
function getSyntheticEvent(nativeEvent){
  if (!syntheticEvent) {
    syntheticEvent = {};
    syntheticEvent.__proto__.persist = persist;
  }
  syntheticEvent.nativeEvent = nativeEvent;
  syntheticEvent.currentTarget = nativeEvent.target;
  //把原生事件对象上的方法和属性都拷贝到合成对象上
  for (let key in nativeEvent) {
    if (typeof nativeEvent[key] === 'function') {
      syntheticEvent[key] = nativeEvent[key].bind(nativeEvent); //绑定this
    } else {
      syntheticEvent[key] = nativeEvent[key];
    }
  }
  return syntheticEvent;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71

3.4. 测试结果

0
0
force
force
2
force
3
1
2
3
4
5
6
7

3.5. setState函数形式





























import React from './react';
import ReactDOM from './react-dom';
class Counter extends React.Component {
  constructor(props) {
    super(props);
    this.state = { number: 0 };
  }
  handleClick = () => {
    this.setState((state) => ({ number: state.number + 1 }));
    console.log(this.state.number);//0
    this.setState((state) => ({ number: state.number + 1 }));
    console.log(this.state.number);//0
    setTimeout(() => {
      this.setState((state) => ({ number: state.number + 1 }));
      console.log(this.state.number);//3
      this.setState((state) => ({ number: state.number + 1 }));
      console.log(this.state.number);//4
    }, 10);
  }
  render() {
    return <div id={'counter' + this.state.number} onClick={this.handleClick}>+</div>
  }
}
ReactDOM.render(
  <Counter />,
  document.getElementById('root')
);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

3.5. 测试结果

0
0
force
force
3
force
4
1
2
3
4
5
6
7

4. 替换相同类型

4.1. src/index.js

























import React from './react';
import ReactDOM from './react-dom';
class Counter extends React.Component {
  constructor(props) {
    super(props);
    this.state = { number: 0 };
  }
  handleClick = () => {
    this.setState((state) => ({ number: state.number + 1 }));
  }
  render() {
    return (
      <div id={'counter' + this.state.number}>
        <p>{this.state.number}</p>
        <button onClick={this.handleClick}>+</button>
      </div>
    )
  }
}
ReactDOM.render(
  <Counter />,
  document.getElementById('root')
);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

4.2. src/react/vdom.js


















































































































































import { TEXT, ELEMENT, CLASS_COMPONENT, FUNCTION_COMPONENT } from './constants';
import { setProps, onlyOne, flatten, patchProps } from './utils';

export function compareTwoElements(oldRenderElement, newRenderElement) {
  oldRenderElement = onlyOne(oldRenderElement);
  newRenderElement = onlyOne(newRenderElement);
  let currentDOM = oldRenderElement.dom;//取出老的DOM节点（此处，element.dom = dom;已经做过预埋设计）
  let currentElement = oldRenderElement;
  if (newRenderElement == null) {
    currentDOM.parentNode.removeChild(currentDOM);//新的虚拟DOM为null，删掉老节点
    currentDOM = null;
  } else if (oldRenderElement.type != newRenderElement.type) { // span div function class
    let newDOM = createDOM(newRenderElement);//类型不同，新节点替换老节点
    currentDOM.parentNode.replaceChild(newDOM, currentDOM);
    currentElement = newRenderElement;
  } else {
    //新老节点都存在，类型一样。进行 dom-diff 深度比较，比较他们的属性和子节点，并尽可能复用老节点
    updateElement(oldRenderElement, newRenderElement);
  }
  return currentElement;
}
// *** 如果是`函数组件`或`类组件`,`oldElement`就是`oldRenderElement`
// renderElement 是函数组件执行后 或 类组件调用render后返回的虚拟DOM，虚拟DOM是由React.createElement创建的
function updateElement(oldElement, newElement) {
  let currentDOM = newElement.dom = oldElement.dom;
  if (oldElement.$$typeof === TEXT && newElement.$$typeof === TEXT) {
    if (oldElement.content !== newElement.content) {
      currentDOM.textContent = newElement.content;
    }
  } else if (oldElement.$$typeof === ELEMENT) {// div span p
    updateDOMProperties(currentDOM, oldElement.props, newElement.props);
  }
}
function updateDOMProperties(dom, oldProps, newProps) {
  patchProps(dom, oldProps, newProps);
}

export function createDOM(element) {
  if (typeof element !== 'object') {
    throw Error(`Uncaught DOMException: Failed to execute 'createElement' on 'Document': The tag name provided ('${element}') is not a valid name.`)
  }
  /**
   * !!! element 如果是字符串或者数字，已经在迭代`children`时封装成对象
   * 因此`createDOM`方法可以整体进行改造
   */
  let dom;
  element = onlyOne(element); // 如果是数组，只取第一个
  let { $$typeof } = element;
  if (!$$typeof) { // 字符串或者数字
    dom = document.createTextNode(element);
  } else if ($$typeof == TEXT) {
    dom = document.createTextNode(element.content);
  } else if ($$typeof == ELEMENT) { // 原生DOM节点
    dom = createNativeDOM(element);
  } else if ($$typeof == FUNCTION_COMPONENT) { // 函数组件
    dom = createFunctionComponentDOM(element);
  } else if ($$typeof == CLASS_COMPONENT) { // 类组件
    dom = createClassComponentDOM(element);
  }
  /**
   * `element`是ReactElement创建出来的虚拟DOM，让虚拟的DOM的`dom`属性指向真实DOM
   * 这里是一个预埋设计，或者叫铺垫，通过虚拟DOM能够获取真实DOM
   */
  element.dom = dom;
  return dom;
}
// 创建函数组件真实的DOM对象
function createFunctionComponentDOM(element) {
  //element: $$typeof, type, key, ref, props
  let { type, props } = element;
  /**
   * function FunctionComponent(props) {
   *   return React.createElement('div', { id: 'counter' }, 'hello');
   * }
   */
  let renderElement = type(props);// type === FunctionComponent
  //element 是 React.createElement(FunctionComponent, config, children); 的返回值
  //element 是 FunctionComponent 的父级，当然这里不是DOM的父级，只是理解为父级
  element.renderElement = renderElement; // 这里也是一个预埋设计
  let dom = createDOM(renderElement);
  return dom;
  // 第25行`element.dom = dom;`，可以推导出: element.renderElement.dom=真实DOM
}
// 创建类组件真实的DOM对象
function createClassComponentDOM(element) {
  let { type, props } = element;
  /**
   * class ClassCounter extends React.Component {
   *   constructor(props) {
   *     super(props);
   *   }
   *   render() {
   *     return React.createElement('div', { id: 'counter' }, 'hello');
   *   }
   * }
   */
  let componentInstance = new type(props);
  element.componentInstance = componentInstance; // 这里也是一个预埋设计
  let renderElement = componentInstance.render();
  componentInstance.renderElement = renderElement; // 这里也是一个预埋设计
  let dom = createDOM(renderElement);
  return dom;
  // 第25行`element.dom = dom;`，可以推导出: element.componentInstance.renderElement.dom=真实DOM
}
/**
let element = React.createElement('button',
  { id: 'sayHello', onClick },
  'say', React.createElement('span', { onClick: spanClick, style: { color: 'red' } }, 'Hello')
);
 */
function createNativeDOM(element) {
  let { type, props } = element; // div button span
  let dom = document.createElement(type); //真实DOM对象
  //1，创建虚拟dom的子节点
  createNativeDOMChildren(dom, element.props.children);
  //2，给DOM元素添加属性
  setProps(dom, props);
  return dom;
}
function createNativeDOMChildren(parentNode, ...children) {
  let childrenNodeArr = children && flatten(children);
  if (childrenNodeArr) {
    for (let i = 0; i < childrenNodeArr.length; i++) {
      let child = childrenNodeArr[i];
      /**
       * !!! 由于需要通过 element 获取 dom 元素，此处将 字符串或者数字 封装成对象
       */
      if (typeof child !== 'object') { // 字符串或数字
        child = childrenNodeArr[i] = { $$typeof: TEXT, type: TEXT, content: child };
      }
      //child会传递给element，预埋设计，跟第25行`element.dom = dom;`逻辑一样，给element添加索引
      child._mountIndex = i;
      let childDOM = createDOM(child);
      parentNode.appendChild(childDOM);
    }
  }
}

export function ReactElement($$typeof, type, key, ref, props) {
  let element = {
    $$typeof, type, key, ref, props
  };
  return element;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144

在updateElement方法中:
如果是函数组件或类组件,oldElement就是oldRenderElement,
renderElement是函数组件执行后 或 类组件调用render后返回的虚拟DOM,
虚拟DOM是由React.createElement创建的.

4.3. src/react/utils.js
























































import { addEvent } from './event';

export function setProps(dom, props) {
  for (let key in props) {
    if (key != 'children') {
      let value = props[key];
      setProp(dom, key, value);
    }
  }
}
//老有新没有=>删除  老有新有=>更新  老没有新有=>添加
export function patchProps(dom, oldProps, newProps) {
  //1,删除老有新没有
  for (const key in oldProps) {
    if (key !== 'children') {//children单独处理
      if (!newProps.hasOwnProperty(key)) {
        dom.removeAttribute(key);//新的不存在,删除
      }
    }
  }
  //2,新增及更新,新有
  for (let key in newProps) {
    if (key !== 'children') {//children单独处理
      setProp(dom, key, newProps[key]);
    }
  }
}
function setProp(dom, key, value) {
  if (/^on/.test(key)) {
    addEvent(dom, key, value);
  } else if (key === 'style') {
    for (const styleName in value) {
      dom.style[styleName] = value[styleName];
    }
  } else {
    dom.setAttribute(key, value);
  }
}

export function onlyOne(obj) {
  return Array.isArray(obj) ? obj[0] : obj;
}

// 打平任意多维数组，避免深度克隆
export function flatten(arr) {
  return arr.reduce((prev, curr, index) => {
    if (Array.isArray(curr)) {
      prev = prev.concat(flatten(curr));
    } else {
      prev = prev.concat(curr);
    }
    return prev;
  }, []);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

4.4. src/react/event.js



















































































import { updateQueue } from './component';

/**
 * React通过，类似于`事件委托`机制，将事件绑定到document上；
 * 并把事件回调函数，以`eventStore`的形式，挂载到对应的真实DOM上
 * @param {*} dom 要绑定事件的DOM节点
 * @param {*} eventType 事件类型 onClick
 * @param {*} listener 事件处理函数
 */
export function addEvent(dom, eventType, listener) {
  eventType = eventType.toLowerCase(); // onClick 作为key，转换成 onclick
  //在要绑定的DOM节点上挂载一个对象，准备存放监听函数
  let eventStore = dom.eventStore || (dom.eventStore = {});
  //eventStore.onClick = () => {console.log('this is onClick')}
  eventStore[eventType] = listener;
  /**
   * 这里可以做兼容处理，比如兼容IE、Chrome、Firefox等等
   */
  // true是捕获阶段，处理事件； false是冒泡阶段，处理事件
  document.addEventListener(eventType.slice(2), dispatchEvent, false);
}

let syntheticEvent;//合成对象，可以复用，减少垃圾回收，提高性能
function dispatchEvent(event) {
  let { type, target } = event;//type->click target->button
  let eventType = 'on' + type; //onclick
  syntheticEvent = getSyntheticEvent(event);
  //事件监听函数执行之前，进入批量更新模式
  updateQueue.isPending = true;
  // 模拟冒泡过程
  while (target) {
    let { eventStore } = target;
    let listener = eventStore && eventStore[eventType];//onClick
    if (listener) {
      listener.call(target, syntheticEvent);
    }
    target = target.parentNode;
  }
  //所有监听函数执行完毕，清掉所有属性
  for (const key in syntheticEvent) {
    if (syntheticEvent.hasOwnProperty(key)) {
      delete syntheticEvent[key];
    }
  }
  //事件处理函数执行完成，关掉批量更新模式
  updateQueue.isPending = false;
  //执行批量更新，把缓存的updater全部执行
  updateQueue.batchUpdate();
}
//如果执行了persist，就让syntheticEvent指向新对象
function persist() {
  syntheticEvent = {};
  /**
   * 下一行写法错误:
   * 根据原型链: obj.__proto__ 指向 Object.prototype;
   * 如果 obj.__proto__.abc = abc 等价于 Object.prototype.abc = abc;
   * 这是具有破坏性的,这样执行后每个 Object() 实力对象，都将具有 __proto__ 都具有了 abc 属性;
   * for (key in obj) {
   *   console.log(key); // abc
   * }
   * 该for循环说明了,for in,可以找到在__proto__上自定义的属性。（用浏览器观察__proto__时,会发现自定义属性颜色更鲜艳）
   */
  // syntheticEvent.__proto__.persist = persist;
  Object.setPrototypeOf(syntheticEvent, { persist }); //等价于 syntheticEvent.__proto__ = { persist };
}
function getSyntheticEvent(nativeEvent) {
  if (!syntheticEvent) {
    persist();
  }
  syntheticEvent.nativeEvent = nativeEvent;
  syntheticEvent.currentTarget = nativeEvent.target;
  //把原生事件对象上的方法和属性都拷贝到合成对象上
  for (let key in nativeEvent) {
    if (typeof nativeEvent[key] === 'function') {
      syntheticEvent[key] = nativeEvent[key].bind(nativeEvent); //绑定this
    } else {
      syntheticEvent[key] = nativeEvent[key];
    }
  }
  return syntheticEvent;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81

原型链的错误写法分析:
错误写法:syntheticEvent.__proto__.persist = persist;
原理说明:

  1. var obj = {}; obj.__proto__ === Object.prototype;//true
  2. obj.__proto__.abc = function abc(){}; => Object.prototype.abc === abc;
  3. 这样是具有破坏性的，这样执行后，每个Object的实例对象的__proto__都具有了abc属性
  4. for (key in obj) {
    console.log(key);//abc
    }
  5. 该for循环说明了,for in,可以找到在__proto__上自定义的属性
  6. 用浏览器观察__proto__时,会发现自定义属性颜色更鲜艳

5. 类组件与函数组件

5.1. src/index.js


















































import React from './react';
import ReactDOM from './react-dom';
//有两个虚拟DOM   <FunctionCounter/> <div id={'counter'}/>
function FunctionCounter(props) {
  return (
    <div id={'counter' + props.number}  >
      <p>{props.number}</p>
      <button onClick={props.handleClick}>+</button>
    </div>
  )
}
class ClassCounter extends React.Component {
  render() {
    return (
      <div id={'counter' + this.props.number}  >
        <p>{this.props.number}</p>
        <button onClick={this.props.handleClick}>+</button>
      </div>
    )
  }
}
class Counter extends React.Component {
  constructor(props) {
    super(props);
    this.state = { number: 0 };
  }
  handleClick = () => {
    this.setState((state) => ({ number: state.number + 1 }));
  }
  render() {
    return (
      /*
      <div id={'counter' + this.state.number}  >
         <p > {this.state.number}</p>
         <button onClick={this.handleClick}>+</button>
       </div>
       */
      <FunctionCounter number={this.state.number} handleClick={this.handleClick} />
      //<ClassCounter number={this.state.number} handleClick={this.handleClick} />
      //React.createElement(ClassCounter, { number: this.state.number, handleClick: this.handleClick })
    )
  }
}
//{type:FunctionCounter,props:{number:0}}
ReactDOM.render(
  <Counter />,
  document.getElementById('root')
);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

5.2. src/react/vdom.js




































































































































































import { TEXT, ELEMENT, CLASS_COMPONENT, FUNCTION_COMPONENT } from './constants';
import { setProps, onlyOne, flatten, patchProps } from './utils';

export function compareTwoElements(oldRenderElement, newRenderElement) {
  oldRenderElement = onlyOne(oldRenderElement);
  newRenderElement = onlyOne(newRenderElement);
  let currentDOM = oldRenderElement.dom;//取出老的DOM节点（此处，element.dom = dom;已经做过预埋设计）
  let currentElement = oldRenderElement;
  if (newRenderElement == null) {
    currentDOM.parentNode.removeChild(currentDOM);//新的虚拟DOM为null，删掉老节点
    currentDOM = null;
  } else if (oldRenderElement.type != newRenderElement.type) { // span div function class
    let newDOM = createDOM(newRenderElement);//类型不同，新节点替换老节点
    currentDOM.parentNode.replaceChild(newDOM, currentDOM);
    currentElement = newRenderElement;
  } else {
    //新老节点都存在，类型一样。进行 dom-diff 深度比较，比较他们的属性和子节点，并尽可能复用老节点
    updateElement(oldRenderElement, newRenderElement);
  }
  return currentElement;
}
// *** 如果是`函数组件`或`类组件`,`oldElement`就是`oldRenderElement`
// renderElement 是函数组件执行后 或 类组件调用render后返回的虚拟DOM，虚拟DOM是由React.createElement创建的
function updateElement(oldElement, newElement) {
  let currentDOM = newElement.dom = oldElement.dom;
  if (oldElement.$$typeof === TEXT && newElement.$$typeof === TEXT) {
    if (oldElement.content !== newElement.content) {
      currentDOM.textContent = newElement.content;
    }
  } else if (oldElement.$$typeof === ELEMENT) {// div span p
    updateDOMProperties(currentDOM, oldElement.props, newElement.props);
  } else if (oldElement.$$typeof === FUNCTION_COMPONENT) {// 函数组件
    updateFunctionComponent(oldElement, newElement);
  } else if (oldElement.$$typeof === CLASS_COMPONENT) {// 类组件
    updateClassComponent(oldElement, newElement);
  }
}
function updateDOMProperties(dom, oldProps, newProps) {
  patchProps(dom, oldProps, newProps);
}
//类组件element.componentInstance.renderElement.dom=真实DOM
function updateClassComponent(oldElement, newElement) {
  let componentInstance = oldElement.componentInstance;
  let updater = componentInstance.$updater;
  let nextProps = newElement.props;
  updater.emitUpdate(nextProps);
}
//函数组件element.renderElement.dom=真实DOM
function updateFunctionComponent(oldElement, newElement) {
  let oldRenderElement = oldElement.renderElement;
  let newRenderElement = newElement.type(newElement.props);
  let currentDOM = compareTwoElements(oldRenderElement, newRenderElement);
  newElement.renderElement = currentDOM;//更新之后，重新挂载
}

export function createDOM(element) {
  if (typeof element !== 'object') {
    throw Error(`Uncaught DOMException: Failed to execute 'createElement' on 'Document': The tag name provided ('${element}') is not a valid name.`)
  }
  /**
   * !!! element 如果是字符串或者数字，已经在迭代`children`时封装成对象
   * 因此`createDOM`方法可以整体进行改造
   */
  let dom;
  element = onlyOne(element); // 如果是数组，只取第一个
  let { $$typeof } = element;
  if (!$$typeof) { // 字符串或者数字
    dom = document.createTextNode(element);
  } else if ($$typeof == TEXT) {
    dom = document.createTextNode(element.content);
  } else if ($$typeof == ELEMENT) { // 原生DOM节点
    dom = createNativeDOM(element);
  } else if ($$typeof == FUNCTION_COMPONENT) { // 函数组件
    dom = createFunctionComponentDOM(element);
  } else if ($$typeof == CLASS_COMPONENT) { // 类组件
    dom = createClassComponentDOM(element);
  }
  /**
   * `element`是ReactElement创建出来的虚拟DOM，让虚拟的DOM的`dom`属性指向真实DOM
   * 这里是一个预埋设计，或者叫铺垫，通过虚拟DOM能够获取真实DOM
   */
  element.dom = dom;
  return dom;
}
// 创建函数组件真实的DOM对象
function createFunctionComponentDOM(element) {
  //element: $$typeof, type, key, ref, props
  let { type, props } = element;
  /**
   * function FunctionComponent(props) {
   *   return React.createElement('div', { id: 'counter' }, 'hello');
   * }
   */
  let renderElement = type(props);// type === FunctionComponent
  //element 是 React.createElement(FunctionComponent, config, children); 的返回值
  //element 是 FunctionComponent 的父级，当然这里不是DOM的父级，只是理解为父级
  element.renderElement = renderElement; // 这里也是一个预埋设计
  let dom = createDOM(renderElement);
  return dom;
  // 第25行`element.dom = dom;`，可以推导出: element.renderElement.dom=真实DOM
}
// 创建类组件真实的DOM对象
function createClassComponentDOM(element) {
  let { type, props } = element;
  /**
   * class ClassCounter extends React.Component {
   *   constructor(props) {
   *     super(props);
   *   }
   *   render() {
   *     return React.createElement('div', { id: 'counter' }, 'hello');
   *   }
   * }
   */
  let componentInstance = new type(props);
  element.componentInstance = componentInstance; // 这里也是一个预埋设计
  let renderElement = componentInstance.render();
  componentInstance.renderElement = renderElement; // 这里也是一个预埋设计
  let dom = createDOM(renderElement);
  return dom;
  // 第25行`element.dom = dom;`，可以推导出: element.componentInstance.renderElement.dom=真实DOM
}
/**
let element = React.createElement('button',
  { id: 'sayHello', onClick },
  'say', React.createElement('span', { onClick: spanClick, style: { color: 'red' } }, 'Hello')
);
 */
function createNativeDOM(element) {
  let { type, props } = element; // div button span
  let dom = document.createElement(type); //真实DOM对象
  //1，创建虚拟dom的子节点
  createNativeDOMChildren(dom, element.props.children);
  //2，给DOM元素添加属性
  setProps(dom, props);
  return dom;
}
function createNativeDOMChildren(parentNode, ...children) {
  let childrenNodeArr = children && flatten(children);
  if (childrenNodeArr) {
    for (let i = 0; i < childrenNodeArr.length; i++) {
      let child = childrenNodeArr[i];
      /**
       * !!! 由于需要通过 element 获取 dom 元素，此处将 字符串或者数字 封装成对象
       */
      if (typeof child !== 'object') { // 字符串或数字
        child = childrenNodeArr[i] = { $$typeof: TEXT, type: TEXT, content: child };
      }
      //child会传递给element，预埋设计，跟第25行`element.dom = dom;`逻辑一样，给element添加索引
      child._mountIndex = i;
      let childDOM = createDOM(child);
      parentNode.appendChild(childDOM);
    }
  }
}

export function ReactElement($$typeof, type, key, ref, props) {
  let element = {
    $$typeof, type, key, ref, props
  };
  return element;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
Last Updated: 4/26/2020, 11:29:48 PM

← dom-diff→
